5 Best Betaflight OSD Boards of 2026 – Your Ultimate Guide to Flight Data Display

In 2026, the top Betaflight OSD boards are defined by advanced specifications and compatibility versatility. The GEPRC TAKER F722, with its STM32F722 MCU and 45A current capacity, excels in lightweight, high-performance applications. Radiolink’s F405 Flight Controllers, featuring integrated OSD and extensive blackbox capabilities, are ideal for both competitive and recreational UAV users. Factors such as data logging potential and integrated sensor support are critical for informed selection. Further investigation reveals more essential insights into best choices.

Key Takeaways

• The GEPRC TAKER F722 45A 32Bit AIO offers high-performance with integrated Betaflight OSD for real-time data monitoring in lightweight drones.
• Radiolink F405 Flight Controller features extensive data logging with a 128MB blackbox and built-in OSD, making it ideal for competitive drone racing.
• F4V3S Betaflight Flight Controller Board provides versatile compatibility with both Betaflight and INAV, ensuring high-performance capabilities for various applications.
• Integrated sensors like ICM42688 in the Radiolink F722 enhance stability, while customizable OSD layouts improve user data visualization during flights.
• Look for OSD boards that support seamless integration, like SmartAudio and intuitive configuration tools to simplify setup and enhance performance.

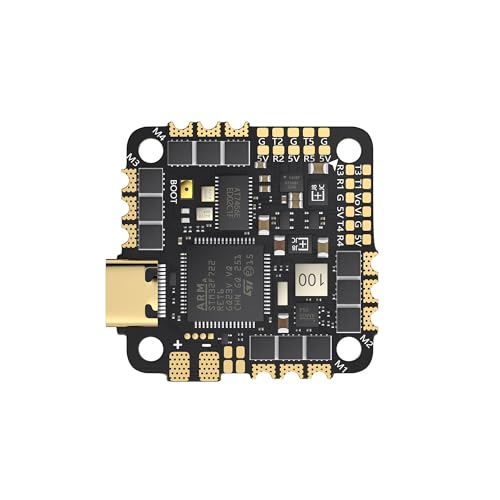

GEPRC TAKER F722 45A 32Bit AIO

GEPRC TAKER F722 45A 32Bit AIO

• Experience high-speed processing for responsive flight control in your drone or FPV build. Features the precise ICM42688-P gyro for stable flight characteristics and...
• Bottom-mounted 6-pin port enables ​direct plug-in installation for HD video transmitters (VTX)​, eliminating soldering hassle. Includes ​5 full UART ports​ for...
• Run smooth 32-bit ESC protocols for exceptionally fluid throttle control. Compatible with INAV firmware thanks to the integrated barometer. Handles ​2-6S LiPo...

View Lastest Price

The GEPRC TAKER F722 45A 32Bit AIO stands out as an ideal choice for enthusiasts seeking high-performance flight control systems, particularly due to its incorporation of the STM32F722 MCU, which greatly enhances processing capabilities and overall responsiveness. Weighing just 9.2 grams and measuring 35mm x 33.5mm, this efficient model supports input voltages of 2-6S LiPo batteries. With a continuous current capability of 45A and burst current of 55A for 10 seconds, its specifications guarantee remarkable flight stability. Additionally, the integration of a Betaflight OSD with the AT7456E chip facilitates real-time data analysis, optimizing flight performance considerably.

Best For: Enthusiasts seeking a lightweight, high-performance flight control system for RC quadcopters and multirotors.

Pros:

• Efficient Design: Weighs only 9.2g, making it ideal for lightweight builds.
• High Current Handling: Supports continuous currents up to 45A and burst currents of 55A, ensuring powerful performance.
• Advanced Features: Integrated Betaflight OSD and robust logging capabilities with 16MB flash memory enhance flight analysis and tuning.

Cons:

• Limited to Specific Battery Types: Requires 2-6S LiPo batteries, which may limit some users.
• Requires Technical Knowledge: May not be suitable for beginners due to the complexity of features and setup.
• Potential for Overheating: As a high-performance component, it may require additional cooling measures during extended use.

Radiolink F405 Flight Controller and 55A 4 in 1 ESC for Racing Drones

For competitive drone racers seeking an ideal combination of performance and reliability, the Radiolink F405 Flight Controller, paired with a robust 55A 4-in-1 ESC, presents an exceptional solution, particularly when utilizing open-source firmware like Betaflight, ArduPilot, or INAV. This system facilitates real-time monitoring of essential metrics such as voltage and attitude via an integrated OSD interface, alongside offering a high-capacity 128MB blackbox for extensive data logging and fault tracing. Significantly, the powerful ESC guarantees compatibility with 3S-6S batteries, delivering continuous 55A and peak 65A currents, thereby optimizing responsiveness and enhancing overall racing efficiency with advanced throttle mode support options.

Best For: Competitive drone racers seeking high performance and reliable flight controller and ESC combinations.

Pros:

• Compatible with multiple open-source firmware like Betaflight, ArduPilot, and INAV for customizable racing performance.
• Integrated OSD interface allows for real-time monitoring of critical metrics during flights.
• Powerful 55A 4-in-1 ESC supports a wide range of battery types and delivers excellent current handling for optimal efficiency.

Cons:

• Requires technical knowledge to configure and optimize firmware settings effectively.
• Potentially steep learning curve for beginners unfamiliar with drone racing setups.
• Size and weight may not be ideal for ultra-lightweight racing builds.

Radiolink F405 Flight Controller for Racing Drones

Radiolink F405 Flight Controller Open Source Betaflight FC, Built-in OSD, Support DJI & CADDX HD and...

• 【Supports Multiple Open-source Firmware】F405, fully compatible with mainstream open-source firmware of ArduPilot, Betaflight, and INAV, achieves razor-sharp...
• 【Storage Capacity】128MB high-capacity blackbox, enabling comprehensive flight data recording and supporting long-term fault tracing.
• 【Integrated Multi-channel BEC】3.3V/300mA, 5V/3A, and 9V/3A outputs support external peripherals including receivers, FPV transmitters, cameras, servos, LED strips...

View Lastest Price

Maneuvering the competitive landscape of racing drones necessitates an adept flight controller, and the Radiolink F405 Flight Controller emerges as an exemplary choice for enthusiasts seeking unparalleled performance. This open-source Betaflight FC offers robust support for various configurations, including DSM, SBUS, TBS Crossfire, and ELRS, ensuring compatibility with numerous racing drones and quadcopters. Additionally, its built-in OSD facilitates real-time monitoring, while the 128MB blackbox storage enables extensive flight data logging. With dimensions of 30.5×30.5mm and a weight of only 9.5 grams, it balances lightweight construction with intricate functionality, making it integral for both competitive and recreational applications.

Best For: Racing drone enthusiasts looking for a lightweight, high-performance flight controller with extensive compatibility and real-time monitoring capabilities.

Pros:

• Versatile compatibility with multiple configurations, including DSM, SBUS, TBS Crossfire, and ELRS.
• Built-in OSD for real-time data monitoring, enhancing the racing experience and flight management.
• Large 128MB blackbox storage enables comprehensive flight data logging for analysis and fault tracing.

Cons:

• Limited customer feedback with only 2 ratings, making it hard to gauge overall reliability.
• 30-Day Return Guarantee may not be sufficient for thorough testing before deciding on long-term use.
• Low Best Sellers Rank suggests lesser popularity or competition in the market, which may affect community support and resources.

Radiolink F722 Flight Controller for FPV Racing Drones

Radiolink F722 Flight Controller Betaflight/INAV 8 Channels FC, OSD Integrated Support DJI O3/O...

• 【High Configuration】F722, equipped with a STM32F722RET6 main processor, ICM42688 gyroscope, BMP280/DPS310, 128MB capacity of Black Box, and MP2491C switching power...
• 【DJI/CADDX HD Digital Video Transmission Plug-and-play】It supports DJI and CADDX high-definition digital image transmission plug-and-play.
• 【Built-in Multiple BEC】The BEC can selectable voltages (3.3V/4.5V/5V/12V) via a switch, and supports toggling image transmission power. It also allows to modify the...

View Lastest Price

Optimized for performance and versatility in FPV racing environments, the Radiolink F722 Flight Controller stands out as an exemplary choice for enthusiasts seeking to integrate advanced features into their drone systems. This controller boasts an STM32F722RET6 processor and an ICM42688 gyroscope, supporting up to eight channels, and is compatible with prominent firmware options, including Betaflight and INAV. Additionally, its integrated OSD facilitates extensive flight data display, covering critical variables such as speed, distance, and GPS metrics. However, some users report durability concerns and intricate setup processes, affecting overall satisfaction, with an average customer rating of 3.8 stars from 24 reviews.

Best For: Enthusiasts seeking advanced features and flexibility in FPV racing drone systems.

Pros:

• Versatile outputs and easy connectivity options for various setups.
• Compatible with popular firmware like Betaflight and INAV.
• Integrated OSD displays vital flight information for enhanced awareness.

Cons:

• Reported issues with durability and reliability over time.
• Complicated setup process, particularly for beginners involving soldering.
• Some users experienced functionality failures shortly after use.

F4V3S Betaflight Flight Controller Board for Quadcopter RC Drone

Lizusidtsy F4V3S F4 V3 V3S LC INAV Betaflight Flight Controller Board Barometer OSD TF BN...

• F4V3S flight controller Item Specifics:
• Standard Board Size: about 36x36mm
• Product Name: F4 Flight Controller Board

View Lastest Price

The F4V3S Betaflight Flight Controller Board stands out as an exceptional choice for drone enthusiasts and professional users alike, primarily due to its advanced STM32 F405 MCU, which facilitates enhanced computational capabilities necessary for high-performance applications in quadcopters and FPV racing. With dimensions of 5.12 x 3.15 x 0.39 inches and a lightweight profile of 0.423 ounces, this black controller, composed of PC and metal, integrates Dshot support, SmartAudio V2 compatibility, and an on-board video filter, enhancing user experiences. Supporting both Betaflight and INAV firmware, the F4V3S guarantees easy installation and robust operational functionality across various drone platforms.

Best For: The F4V3S Betaflight Flight Controller Board is best for drone enthusiasts and professionals seeking high-performance and versatile flight control solutions.

Pros:

• High computational capabilities with the advanced STM32 F405 MCU for enhanced performance in quadcopters and FPV racing.
• Easy installation and compatibility with both Betaflight and INAV firmware for versatile use across different drone platforms.
• Features like Dshot support, SmartAudio V2, and an on-board video filter for improved user experience and video quality.

Cons:

• Some batches may have varying appearances, which could affect consistency in product aesthetics.
• Limited package contents, as the controller board does not include other necessary components or accessories.
• Potential minor measurement errors of +/- 1-3cm may lead to installation challenges in specific setups.

Factors to Consider When Choosing a Betaflight OSD Board

When selecting a Betaflight OSD board, it’s crucial to evaluate compatibility with your flight controller, as this guarantees seamless integration and peak performance. You should also consider the data logging capabilities, integrated sensor support, and display features, since these factors notably influence functionality and user experience. Finally, the ease of configuration and setup cannot be overlooked, as it directly affects your efficiency in achieving a customized flight setup.

Compatibility With Flight Controllers

In selecting an appropriate Betaflight OSD board, one must critically evaluate its compatibility with the specific flight controller employed in your drone configuration, given that varied controllers exhibit distinct integration capabilities and supported communication protocols. Primarily, verify that the OSD board accommodates multi-protocol support, as certain flight controllers necessitate specific communication methodologies such as DShot or PWM for peak functionality. Additionally, assess whether the OSD board enables real-time data transmission, showcasing critical flight data—including battery voltage, speed, and GPS statistics—directly on the video feed. Furthermore, confirm that the board aligns with the firmware utilized by your flight controller, as compatibility with frameworks like Betaflight or INAV is essential for seamless operation and setup, without overlooking size considerations to guarantee adequate fit.

Data Logging Capabilities

Data logging capabilities represent a vital aspect of selecting a prime Betaflight OSD board, particularly for enthusiasts seeking advanced telemetry and insight into flight operations. Many boards offer extensive flight log storage, allowing for up to 128MB of blackbox memory dedicated to thorough flight data recording. The integrated blackbox feature not only facilitates long-term fault tracing and diagnostics but also provides significant insights into flight performance and potential issues. Additionally, real-time tracking of essential flight parameters, such as voltage, attitude, and mode status via the OSD interface, enhances situational awareness. Finally, the ability to customize OSD layouts empowers users to prioritize displayed data, thereby making monitoring more efficient while supporting advanced data visualization tools for post-flight analysis.

Integrated Sensor Support

Elevating the performance and operational efficacy of a Betaflight OSD board hinges upon the integration of advanced sensors, which play a pivotal role in providing real-time telemetry data essential for informed flight monitoring. The incorporation of integrated sensors, including gyroscopes, accelerometers, and barometers, greatly enhances stability and precision, facilitating superior flight control in various conditions. Compatibility with diverse sensor protocols, such as BMP280 for altitude measurement and ICM42688 for improved stability, allows for effective communication with peripheral devices, ensuring peak data retrieval. Furthermore, many OSD boards enable customizable displays for sensor data, presenting critical flight parameters like altitude and battery voltage directly onto your video feed. Using OSD boards with built-in sensors streamlines system setups by reducing component count and complexity.

OSD Display Features

When selecting a Betaflight OSD board, evaluating the display features is essential for enhancing situational awareness and pilot safety. An effective OSD improves your flight experience by providing vital data—such as battery voltage, altitude, and speed—directly onto your video feed. Integration of an OSD chip like the AT7456E within the flight controller streamlines data tuning while minimizing additional hardware needs. Customizable layouts allow for individualized configurations, enabling adjustments to visibility and positioning of flight statistics based on pilot preference. In addition, advanced OSD systems support telemetry data displays, which can incorporate GPS information, offering detailed information during operation. Compatibility with Betaflight and other open-source firmware facilitates ongoing customization and upgrades, ensuring peak system performance.

Configuration and Setup Ease

In selecting an ideal Betaflight OSD board, one must emphasize the configuration and setup ease, as an intuitive user interface not only enhances operational efficiency but also caters to varying levels of pilot expertise. A user-friendly configuration interface, like the Betaflight Configurator, guarantees quick access to OSD settings, simplifying adjustment for novices and experienced users alike. Moreover, support for SmartAudio and drag-and-drop configuration streamlines integration with video transmitters, reducing setup time and complexity considerably. Compatibility with various flight controller firmware facilitates diverse OSD features tailored to individual preferences and flight requirements. Additionally, the capacity for customizing OSD display options allows users to prioritize critical flight data, while clear documentation and community support greatly alleviate potential configuration challenges.

Weight and Dimensions

Evaluating the weight and dimensions of a Betaflight OSD board is crucial, as it directly influences the drone’s overall performance, maneuverability, and operational efficiency. The weight of an OSD board is a critical factor; lighter boards facilitate enhanced agility, thereby improving flight dynamics. Dimensions are equally essential, as they guarantee a proper fit within the drone’s frame, preventing physical obstructions or balance issues that can negatively impact flight stability. Furthermore, ideal integration necessitates a careful assessment of the layout and size of the OSD board, given that certain models require specific mounting configurations. A compact design not only bolsters aerodynamics but also aids in achieving improved flight efficiency and extended battery life, ultimately contributing to superior operational efficacy.

Power Management Options

Understanding power management options in Betaflight OSD boards greatly influences overall system efficacy, particularly when accounting for the diverse range of peripherals integrated into modern racing drones. When selecting an OSD board, prioritize those offering suitable voltage outputs, such as BEC outputs of 5V or 12V, essential for powering components like cameras and transmitters. Moreover, the OSD board’s capability to manage voltage supplied by 3S to 6S LiPo batteries ensures operational stability. Integrated features such as multi-channel BECs providing various voltage levels concurrently enhance functionality. Additionally, confirming support for SmartAudio facilitates efficient video transmission power management. Finally, rigorously assess onboard regulators’ specifications to guarantee they can handle the combined current from multiple devices without risk of overheating or operational failure.

Frequently Asked Questions

What Is the Function of an OSD in Drones?

An OSD, or On-Screen Display, in drones functions by overlaying critical flight information—such as altitude, speed, battery voltage, and other telemetry data—directly onto your video feed. This integration enables you to monitor flight parameters in real-time, enhancing situational awareness and decision-making capabilities. Additionally, OSDs often include customizable features, allowing you to tailor the information displayed according to your specific operational needs, thereby optimizing performance and improving overall flight safety.

Can I Upgrade My Existing OSD Board?

Yes, you can upgrade your existing OSD board to enhance functionality and performance. Given technological advancements and increased data-processing capabilities, newer OSD models often provide features such as improved data accuracy, customizable display options, and enhanced compatibility with various flight controllers. It’s essential to evaluate compatibility with your current setup, ensuring that the new board meets your specific requirements for flight operations and performance metrics, thereby optimizing your flying experience for precision and responsiveness.

Are Betaflight OSD Boards Compatible With All Flight Controllers?

Betaflight OSD boards exhibit varying compatibility with flight controllers; generally, they operate effectively with most Betaflight-supported controllers, including those utilizing UART outputs. However, discrepancies may arise when interfacing with non-Betaflight systems or proprietary controllers, necessitating a thorough examination of both hardware and firmware specifications. Ensuring compatibility mandates verifying the integrated features, operational voltage, and pin assignments specific to each flight controller model, thereby minimizing the potential for operational disruptions during flight engagements.

How Do I Troubleshoot OSD Display Issues?

To troubleshoot OSD display issues, first check the connections between the flight controller and the OSD board, ensuring they’re secure and free from damage. Next, validate your configuration settings within Betaflight, confirming the OSD elements are enabled according to your preferences. If the issue persists, consider updating the firmware for both the flight controller and OSD board, as outdated software may cause compatibility problems that hinder effective data display functionality in real-time applications.

What Power Sources Are Required for Betaflight OSD Boards?

Betaflight OSD boards typically require power sourced from the flight controller’s BEC (Battery Eliminator Circuit), operating within a voltage range of 5V to 12V. It’s vital to guarantee the OSD board receives adequate current, which generally should be at least 1A, to maintain stable functionality during flight. Additionally, consideration of the overall power distribution system within the multi-rotor is essential to prevent voltage drops that could impede performance, especially under load conditions.
